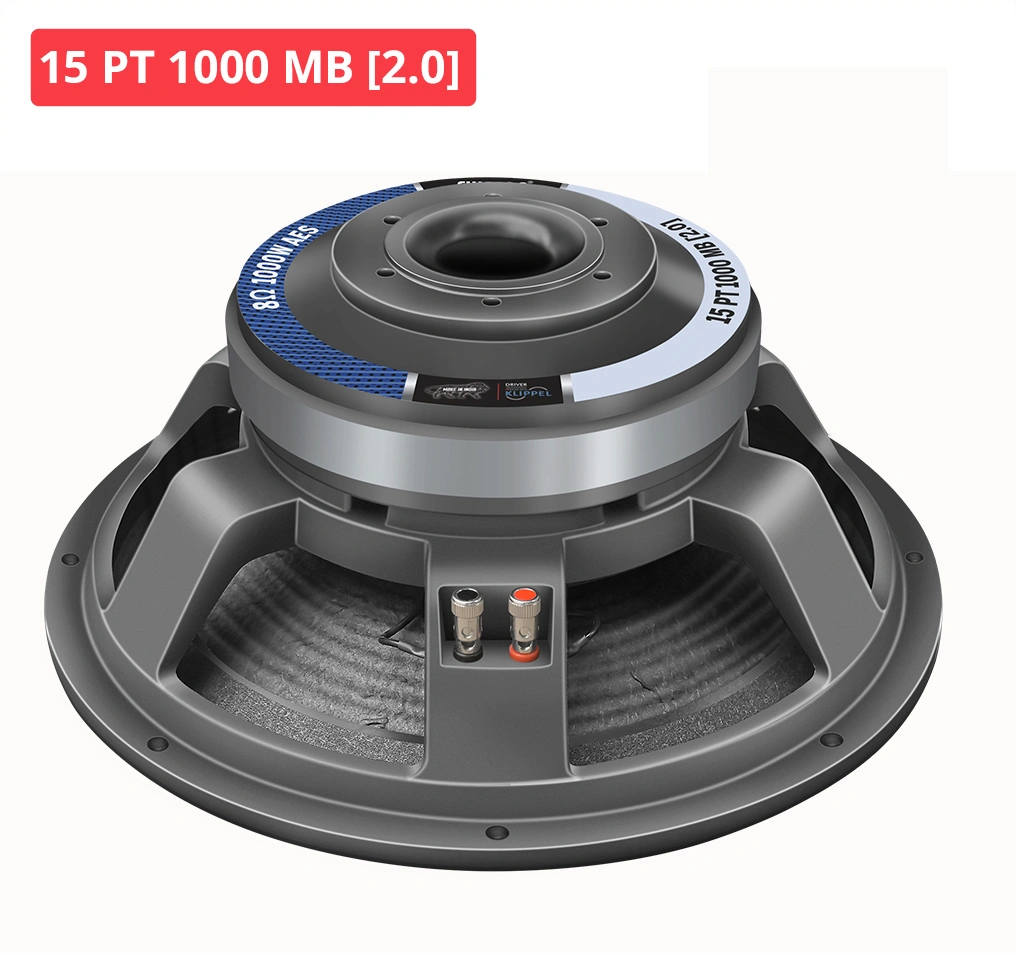

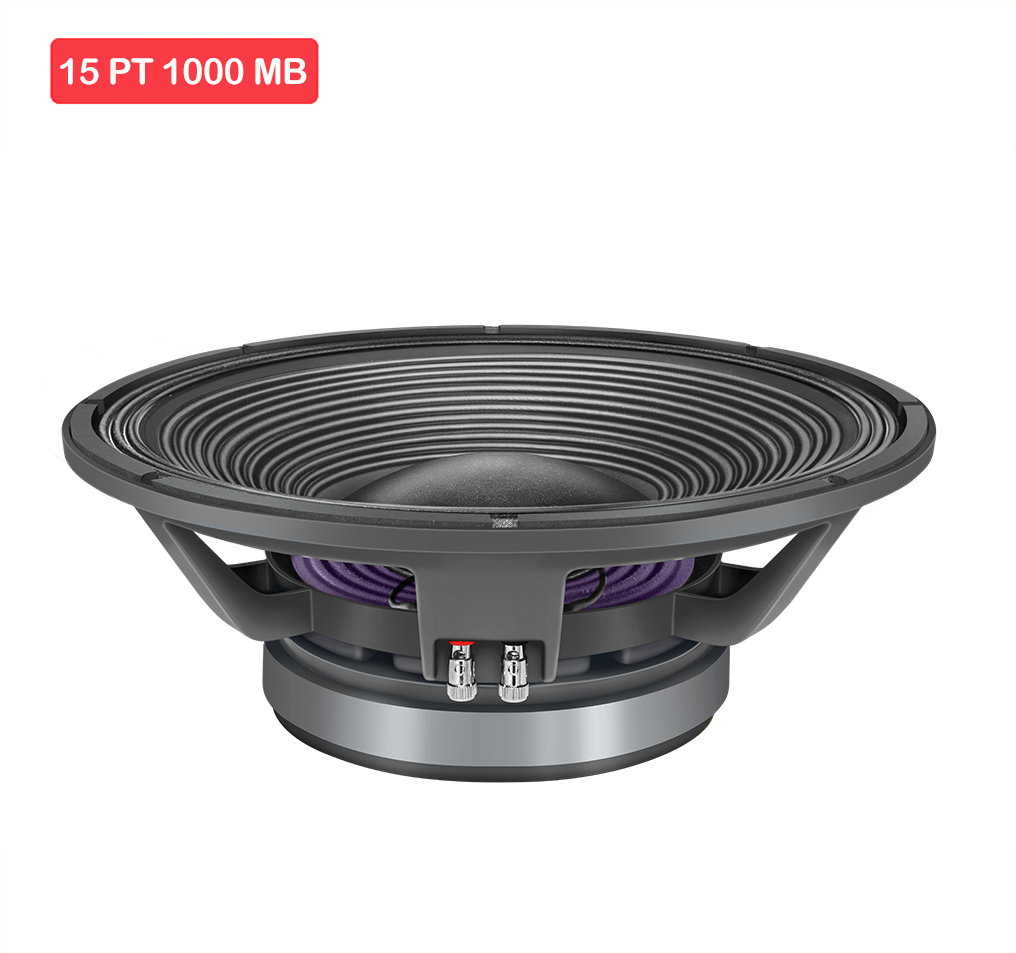

15 PT 1000 MB [2.0]
15 PT 1000 MB is mid bass transducer with extended low and high SPL (around 100 dB) in the frequency range of around 150 Hz-1000 Hz. Perfect balance of mid and bass with high sensitivity makes this tranducer best suited for Single/Dual Top.
This transducer is a perfect complement for any Sub Woofers used for competition or open field application. Suitable for Bass Reflex Enclosure.
Key Features
- Program Power : 2000 W
- Voice Coil Diameter : 99.3 mm (4 in)
- Response : 60-3500 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 388 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 1000w
- Program Power 2000w
- Sensitivity (1W/1m) 95 dB
- Frequency Range 60-3500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material CCAR
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 60 Hz
- DC Resistance (Re) 5.85 Ω
- Electrical Q (Qes) 0.63
- Mechanical Q (Qms) 13.65
- Total Q (Qts) 0.6
- Compliance Equivalent Volume (vas) 56.21 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 918.63 cm^2
- Reference Efficiency (ƞo) 1.89%
- Moving Mass including air load (Mms) 146.60 gms
- Motor Strength (Bl) 22.72 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.53 mH
- Efficiency Bandwith Product (EBP) 95 Hz
- Voice Coil Overhang (Xmax) ±5.3 mm
- Overall Diameter 388 mm
- Bolt Circle Diameter 373 mm
- Baffle Cutout Diameter 358 mm
- Depth 151 mm
- Flange and Gasket Thickness 13 mm
- Gross Weight 14.20 Kg.
- Recone Kit Number REC15PT1000MB[2.0]
