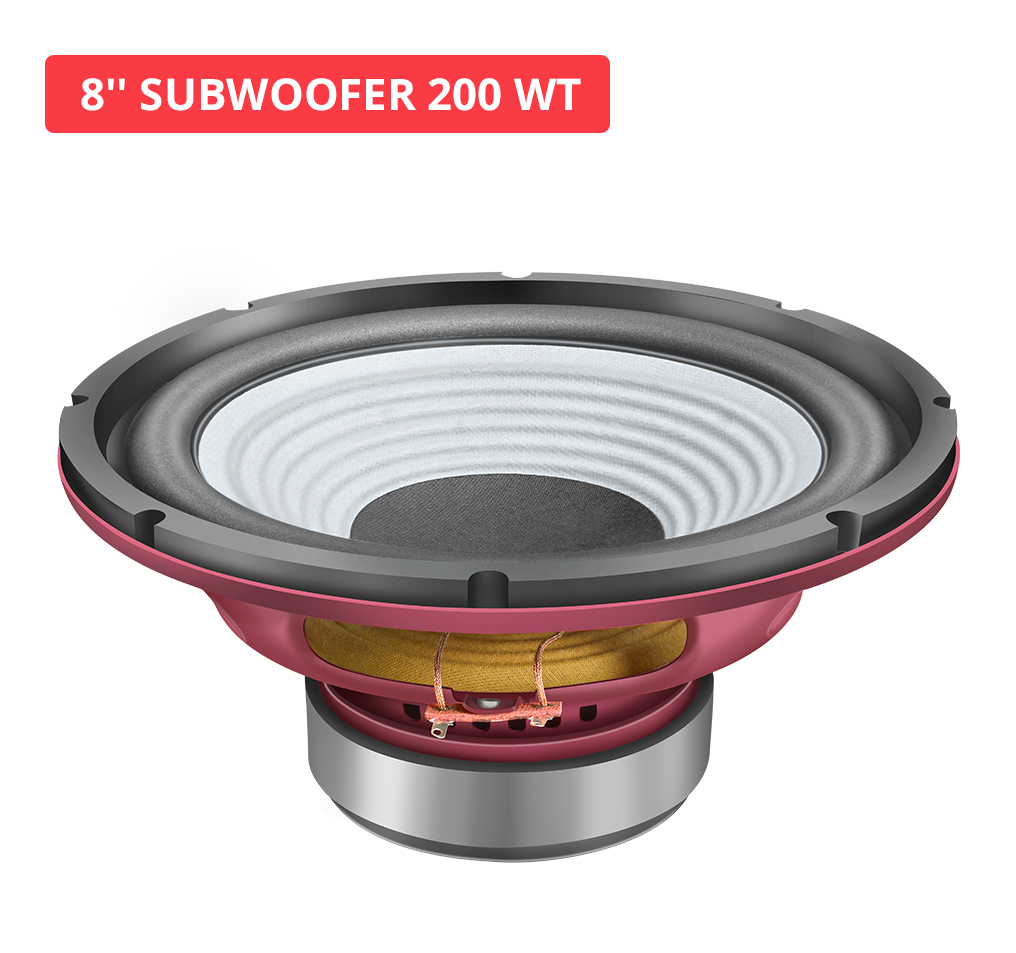

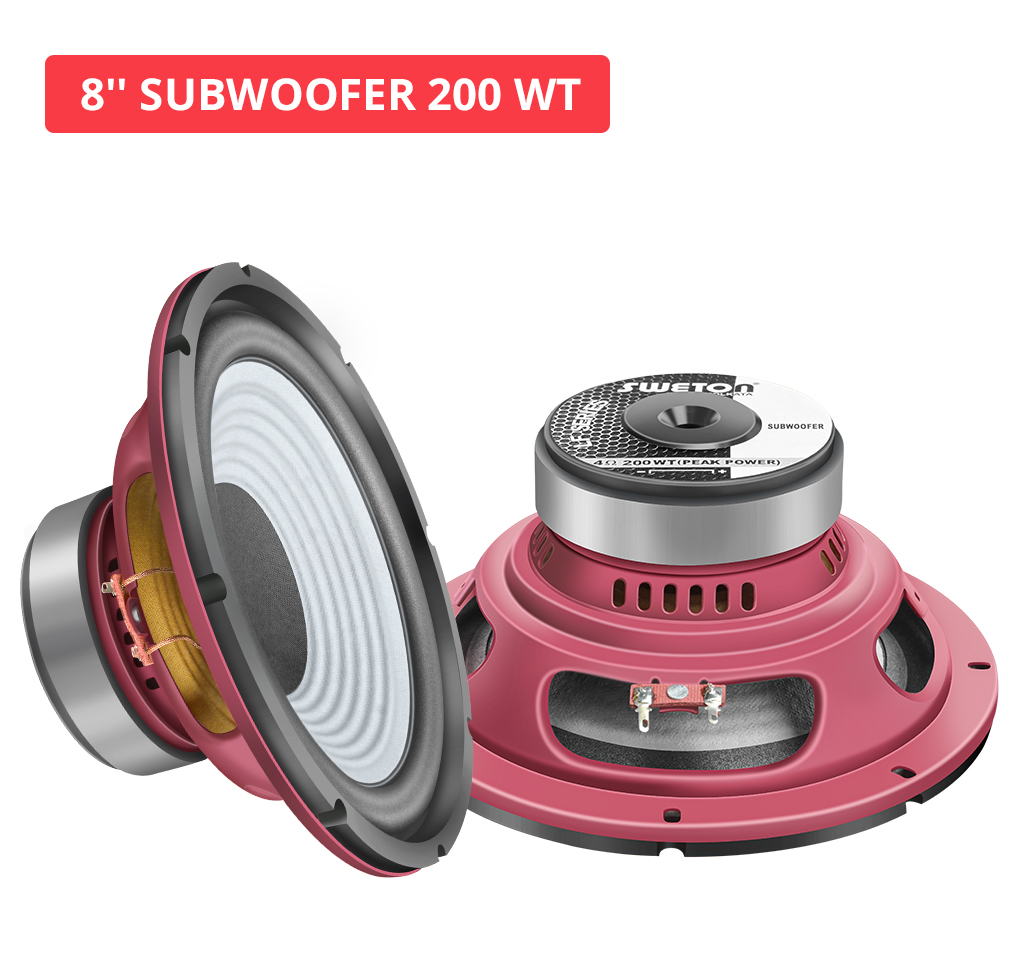

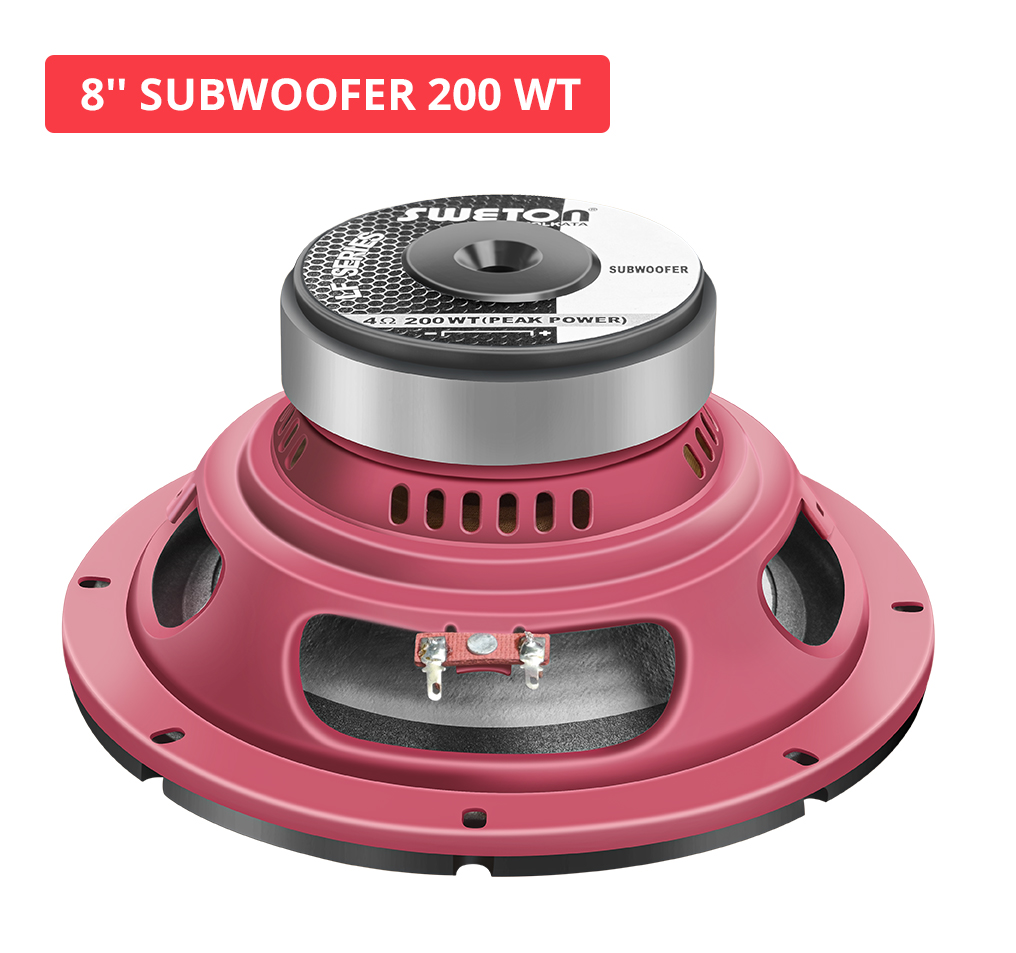

8'' SUBWOOFER 200 WT
- 4 Ohm
- Program Power : 100 W
- Voice Coil Diameter : 35 mm
- Response : 62-4.6K Hz
- Sensitivity (1W/1m) : 88 db
Specification
Nominal Diameter
210 mm
Nominal Impedance
4 Ω
Nominal Power Handling (AES)
50 W
Program Power (AES)
200 W
Sensitivity (1W/1m)
88 db
Frequency Range
62-4.6K Hz
Magnet Material
Ferrite
Voice Coil Dia
35 mm
Winding Material
COPPER
Former Material
KAPTON
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
57 Hz
DC Resistance (Re)
3.5 Ω
Electrical Q (Qes)
0.99
Mechanical Q (Qms)
12.58
Total Q (Qts)
0.91
Compliance Equivalent Volume (Vas)
17.67 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.12 Ltrs
Effective Surface Area of Cone (Sd)
227 cm^2
Reference Efficiency (no)
0.42%
Moving Mass including air load (Mms)
26.54 gms
Motor Strength (BL)
6.07 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.57 mH
Efficiency Bandwith Product (EBP)
63 Hz
Voice Coil Overhang (Xmax)
±5.31 mm
Mounting Info
Overall Diameter
210 mm
Baffle Cutout Diameter
180 mm
Depth
100 mm
Flange and Gasket Thickness
12 mm
Recone Kit
Recone Kit Number
REC8INCHSUB
