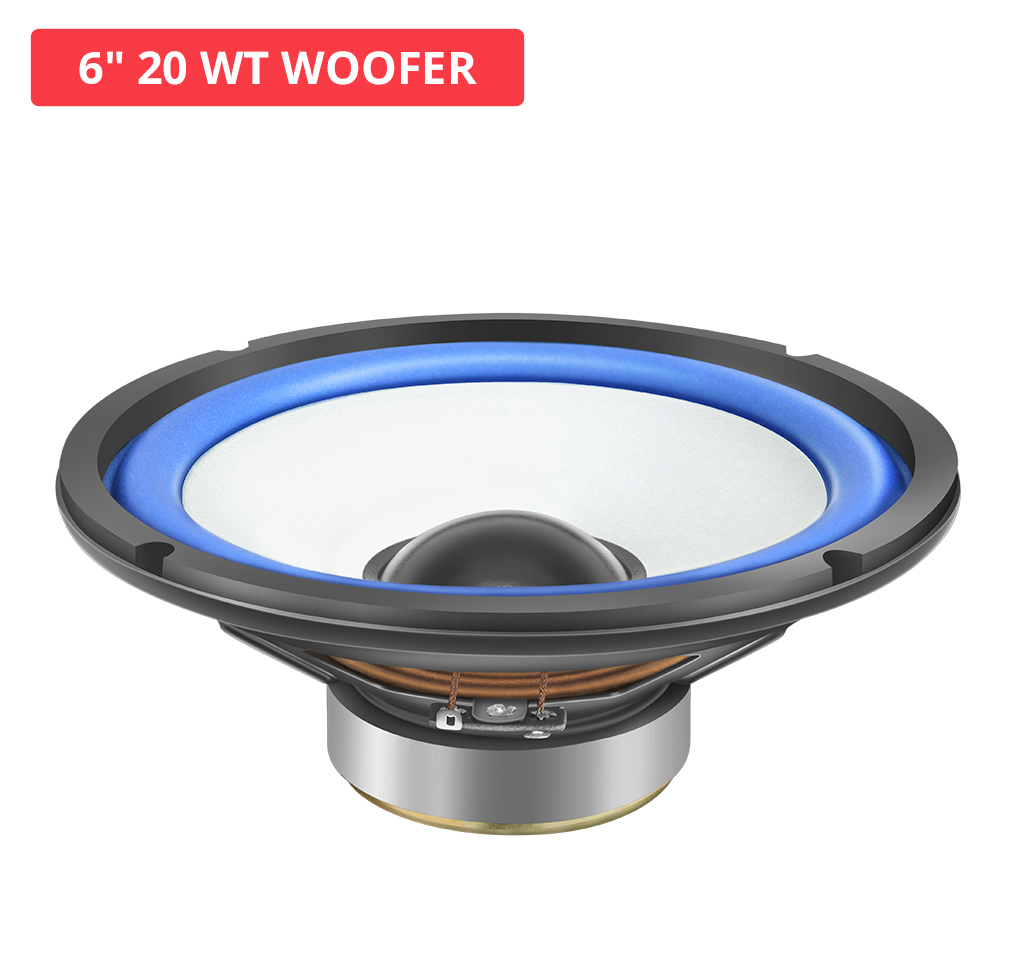

6" 20 WT WOOFER
- 4 Ohm
- Program Power : 40 W
- Voice Coil Diameter : 25.4 mm
- Response : 79-7.5K Hz
- Sensitivity (1W/1m) : 86 dB
Specification
Nominal Diameter
166 mm
Nominal Impedance
3.4 Ω
Nominal Power Handling (AES)
20 W
Program Power (AES)
40 W
Sensitivity (1W/1m)
86 dB
Frequency Range
79-7.5K Hz
Magnet Material
Ferrite
Voice Coil Dia
25.4 mm
Winding Material
COPPER
Former Material
SV COATED KRAFT
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
79 Hz
DC Resistance (Re)
3.4 Ω
Electrical Q (Qes)
2.21
Mechanical Q (Qms)
6.88
Total Q (Qts)
1.67
Compliance Equivalent Volume (Vas)
11.97 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.04 Ltrs
Effective Surface Area of Cone (Sd)
143 cm^2
Reference Efficiency (no)
0.25%
Moving Mass including air load (Mms)
9.77 gms
Motor Strength (BL)
2.73 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.27 mH
Efficiency Bandwith Product (EBP)
36 Hz
Voice Coil Overhang (Xmax)
±3.15 mm
Mounting Info
Overall Diameter
166 mm
Baffle Cutout Diameter
144 mm
Depth
64.75 mm
Flange and Gasket Thickness
8 mm
Recone Kit
Recone Kit Number
REC6INCH20W
