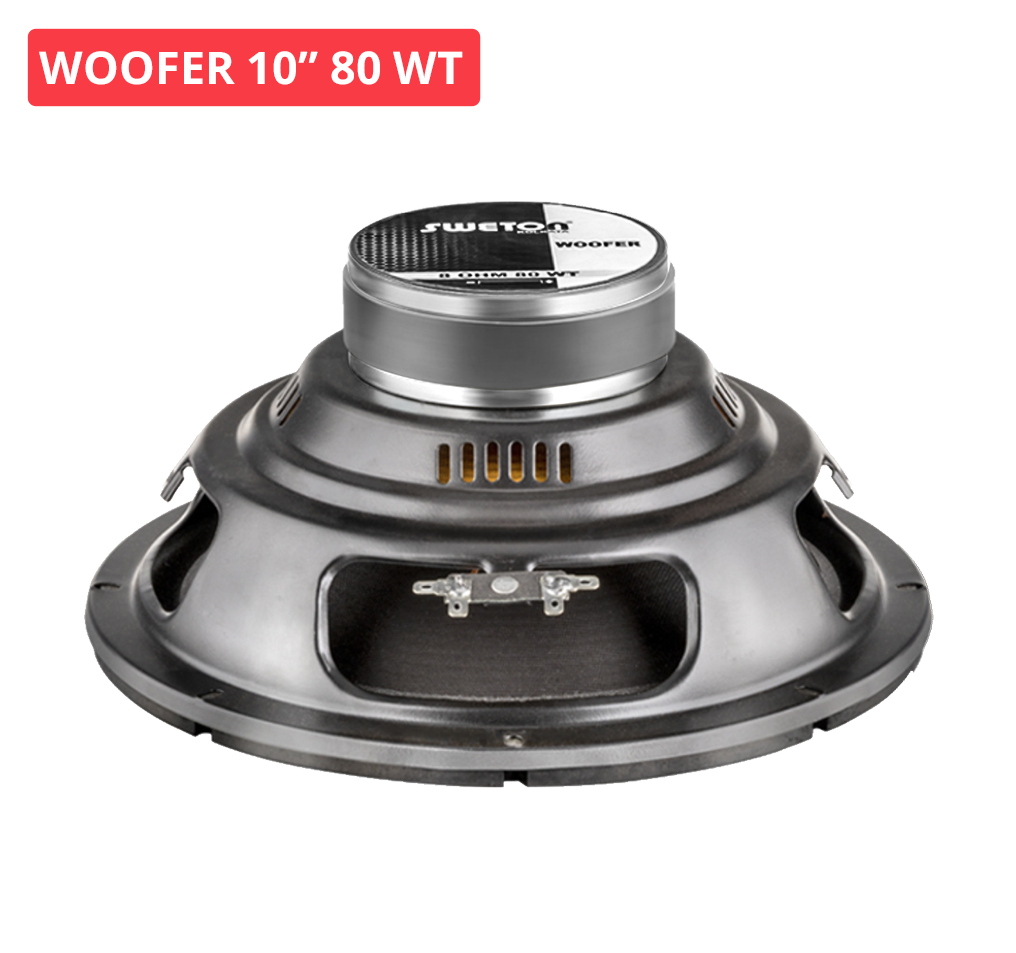

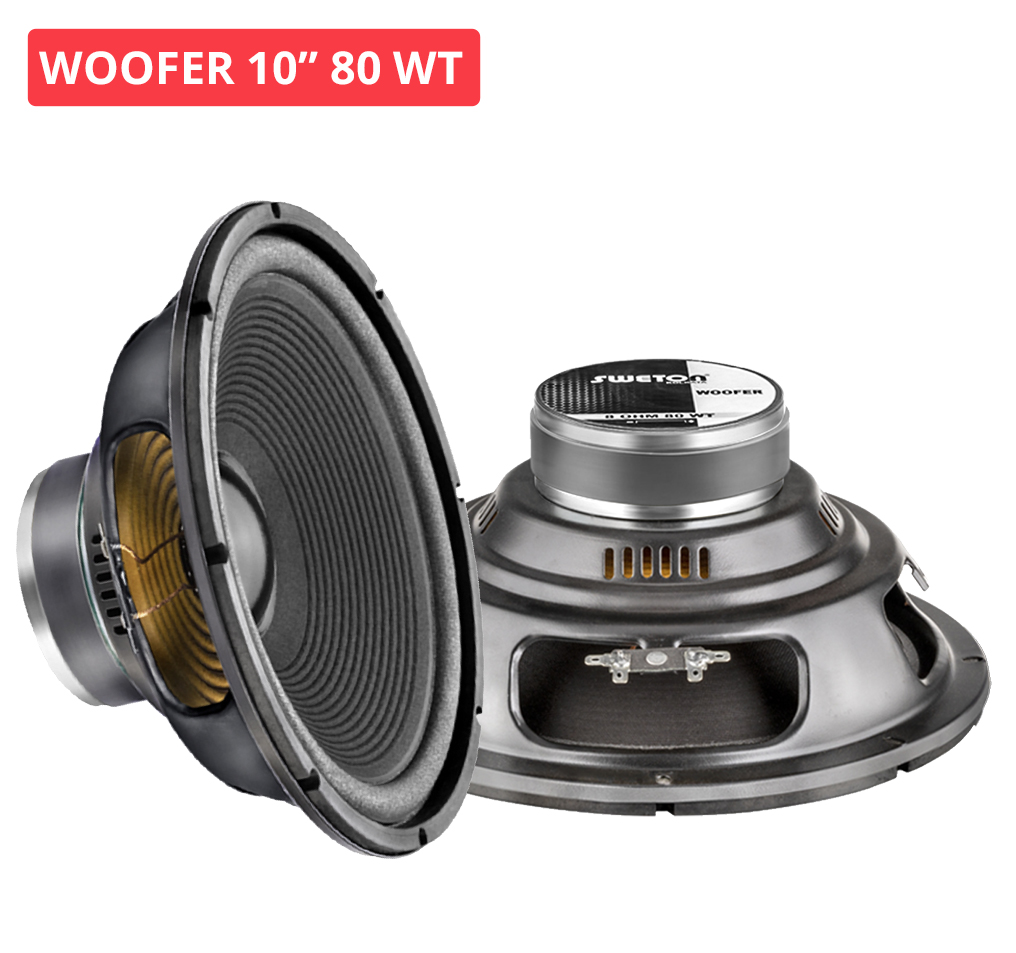

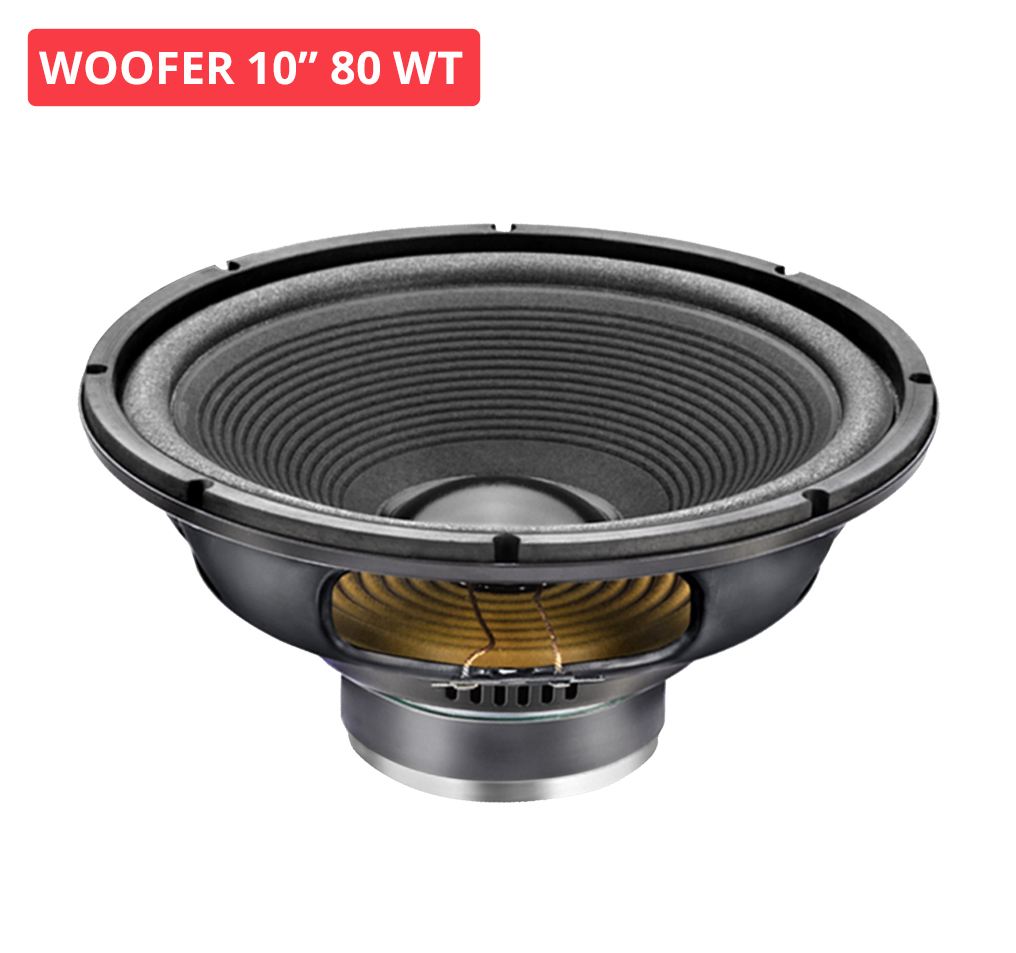

10" 80 WT WOOFER
- 8 Ohm
- Program Power : 160 W
- Voice Coil Diameter : 34 mm
- Response : 61-4.7K Hz
- Sensitivity (1W/1m) : 89 db
Specification
Nominal Diameter
255 mm
Nominal Impedance
8 Ω
Nominal Power Handling (AES)
80 W
Program Power (AES)
160 W
Sensitivity (1W/1m)
89 db
Frequency Range
61-4.7K Hz
Magnet Material
Ferrite
Voice Coil Dia
34 mm
Winding Material
COPPER
Former Material
KAPTON
Winding Type
Outside
T/S Parameters
Resonant Frequency (Fs)
61 Hz
DC Resistance (Re)
5.3 Ω
Electrical Q (Qes)
1.71
Mechanical Q (Qms)
14.66
Total Q (Qts)
1.53
Compliance Equivalent Volume (Vas)
35.59 Ltrs
Peak Diaphragm Displacement Volume (Vd)
0.21 Ltrs
Effective Surface Area of Cone (Sd)
370 cm^2
Reference Efficiency (no)
0.46%
Moving Mass including air load (Mms)
36.33 gms
Motor Strength (BL)
6.59 T-m
Voice Coil Inductance @ 1 KHz (Le)
0.83 mH
Efficiency Bandwith Product (EBP)
36 Hz
Voice Coil Overhang (Xmax)
±5.79 mm
Mounting Info
Overall Diameter
255 mm
Baffle Cutout Diameter
228 mm
Depth
116 mm
Flange and Gasket Thickness
12 mm
Recone Kit
Recone Kit Number
REC10INCH80W
